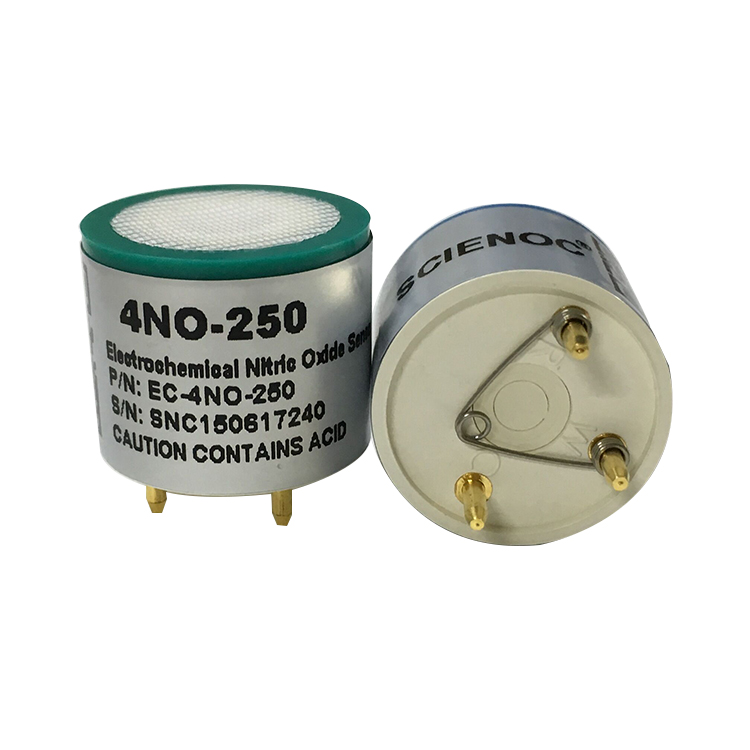

Electrochemical Nitric Oxide Sensor EC-4NO-250
EC-4NO-250 is a NO sensor which detects Nitric Oxide in level from 0-250 ppm.
EC-4NO-250 Nitric Oxide Sensor has very excellent repeatability, long term stability, selectivity and resistivity, it is useful in many applications.
As the output current is fairly large, it can detect the low concentration of NO with good accuracy.
Nitric Oxide (NO) Electrochemical Sensor EC-4NO-250 can be retrofitted easily to existing product designs.
Dimensions in millimeters(±0.1mm)
Target Gas and Concentration
| Gas | P/N | Operating principle | Detection Range | Maximum Overload |
Nitric Oxide (NO) | EC-4NO-250 | 3-electrode electrochemical | 0~250ppm | 1000ppm |
Gas Sensitivity Characteristics
| Gas | Concentration & Output Current |
| Nitric Oxide (NO) | 0.40 ± 0.05μA/ppm |
Ratings & environment
| Response Time | (T90)≤25s (Typical 10s) |
| Repeatability | <±2% signal |
| Linearity | Linear |
| Long term output Drift | <2% signal/month |
| Resolution | 0.5 ppm |
| Recommended Load | 5~30 Ω |
| Bias Voltage | +300 mV |
| Operating Temp. Range | 20℃~ 50℃ |
| Operating Humidity | 15% RH ~ 90% RH(non-condensing) |
| Operating Pressure Range | 800 ~ 1200 mbar |
Storage & Shelf Life
| Recommended Storage Temperature | 0℃~ +20℃ in sealed package |
| Expected Operating Life | 24 months in air |
| Storage Life | 6 months in original package |
| Standard Warranty | 18 months from the date of delivery |
Cross Sensitivity Data
| Gas | Concentration (ppm) | Output Signal (ppm NO equivalent) |
| Carbon Monoxide | 200 | 0.4 |
| Sulfur Dioxide | 10 | 0 |
| Nitrogen Dioxide | 5 | 1.6 |
| Hydrogen Sulfide | 15 | -1.4 |

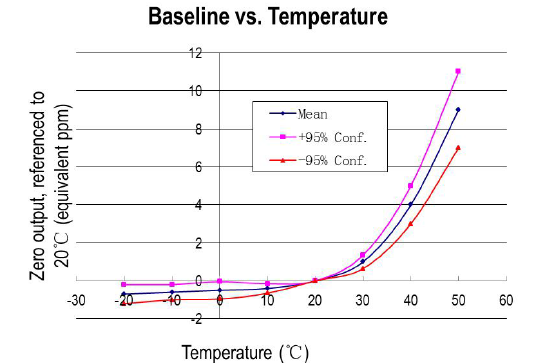

Temperature Data

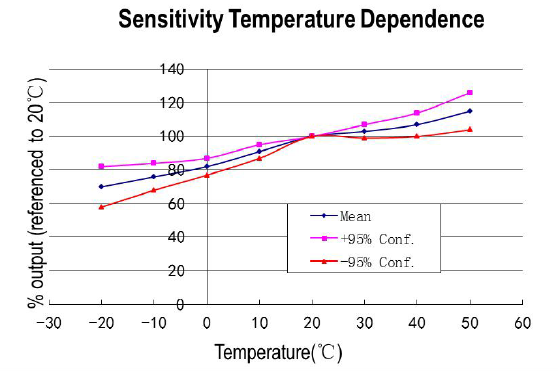

Sensitivity Temperature Dependence
