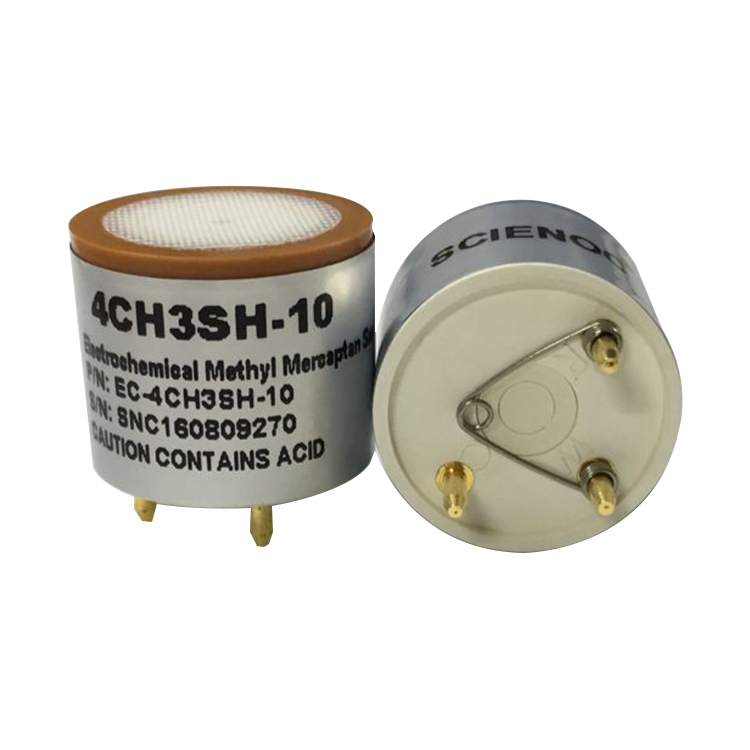

Electrochemical Methyl Mercaptan Sensor EC-4CH3SH-10
EC-4CH3SH-10 is a Methyl Mercaptan Sensor which detects Methyl Mercaptan in level from 0-10 ppm.This product is for fixed and portal applications for detection of Methyl Mercaptan(CH3SH) in industrial,environmental and life safety protection fileds.
Methyl Mercaptan(CH3SH) Electrochemical Sensor EC-4CH3SH-10 can be retrofitted easily to existing product designs.
Dimensions in millimeters(±0.1mm)
Target Gas and Concentration
| Gas | P/N | Operating principle | Detection Range | Maximum Overload |
| Methyl Mercaptan (CH3SH) | EC-CH3SH-10 | 3-electrode electrochemical | 0~10ppm | 20ppm |
Gas Sensitivity Characteristics
| Gas | Concentration & Output Current |
| Methyl Mercaptan (CH3SH) | 0.70 ± 0.15μA/ppm |
Ratings & environment
| Response Time | (T90)≤30s |
| Repeatability | <±2% signal |
| Linearity | Linear |
| Long term output Drift | <2% signal/month |
| Resolution | 0.1 ppm |
| Recommended Load | 5~50 Ω |
| Bias Voltage | 0 mV |
| Operating Temp. Range | -20℃~ 50℃ |
| Operating Humidity | 15% RH ~ 90% RH(non-condensing) |
| Operating Pressure Range | 800 ~ 1200 mbar |
Storage & Shelf Life
| Recommended Storage Temperature | 0℃~ +20℃ in sealed package |
| Expected Operating Life | 24 months in air |
| Storage Life | 6 months in original package |
| Standard Warranty | 18 months from the date of delivery |
Cross Sensitivity Data
| Gas | Concentration (ppm) | Output Signal (ppm CH3SH equivalent) |
| Hydrogen Sulphide | 25 | 45 |
| Sulfur Dioxide | 10 | 4 |
| Nitric oxide | 20 | 0 |
| Nitrogen Dioxide | 10 | -5 |
| Hydrogen | 1000 | 0 |

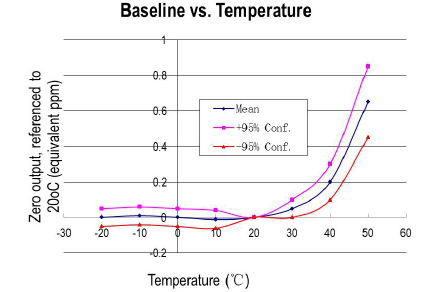

Temperature Data

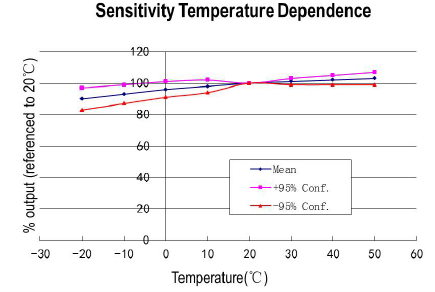

Sensitivity Temperature Dependence
