This is Electrochemical sensor for Hydrogen Sulfide.(Electrochemical Hydrogen Sulfide sensor,H2S gas sensor).
many different detection range available.details see below.
Special detection range can be customized.
The Hydrogen Sulfide sensor Modules are available too.

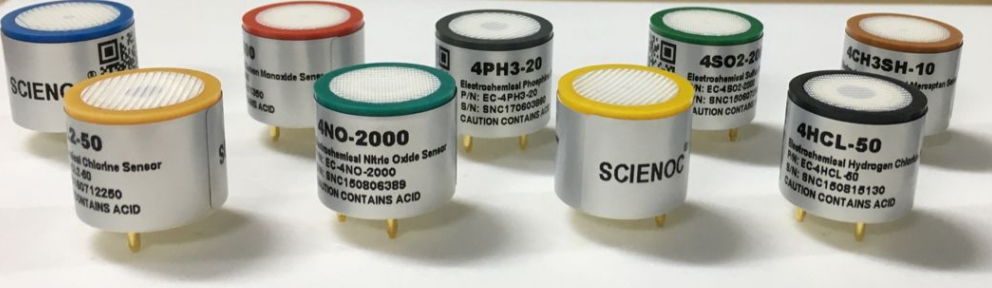

Size: ready stock for all 4 series. 7 series are produced according to orders.
SCIENOC's Hydrogen Sulfide sensor is very stable in normal circumstance for more than 6 months, and can detect H2S with excellent accuracy and fast response speed without reduction of sensitivity.standard warranty is 18 months from dispatch time.extended warranty sensors can be customized.
SCIENOC's Electrochemical Hydrogen Sulfide sensor can be retrofitted easily to existing product designs.

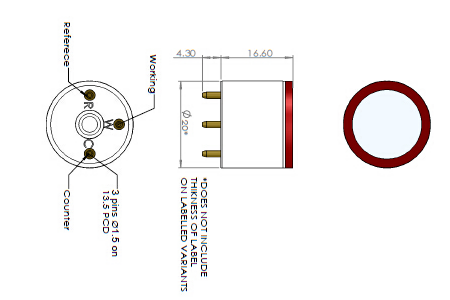

Dimensions in millimeters(±0.1mm)
Target Gas and Concentration
Gas | Operating Principle | P/N | Detection Range |
Hydrogen Sulfide (H2S) |
3-electrode electrochemical | EC-4H2S-0.06 | 0~0.06 ppm 10 ppm |
EC-4H2S-1 | 0~1 ppm | ||
EC-4H2S-5 | 0~5 ppm | ||
EC-4H2S-10 | 0~10 ppm | ||
EC-4H2S-20 | 0~20 ppm | ||
EC-4H2S-21 | 0~21 ppm | ||
EC-4H2S-30 | 0~30 ppm | ||
EC-4H2S-50 | 0~50 ppm | ||
EC-4H2S-200 | 0~200 ppm | ||
EC-4H2S-500 | 0~500 ppm | ||
EC-4H2S-2000 | 0~2000 ppm | ||
EC-4H2S-5000 | 0~5000 ppm | ||
EC-4H2S-10000 | 0~10000 ppm | ||
EC-4H2S-20000 | 0~20000 ppm | ||
EC-4H2S-30000 | 0~30000 ppm | ||
EC-4H2S-50000 | 0~50000 ppm |
Gas Sensitivity Characteristics
P/N | Sensitivity | Response Time (T90) | Resolution |
EC-4H2S-0.06 | 150 ± 50 nA /ppb | 10 s | <0.25 ppb |
EC-4H2S-1 | 20 ± 10 μA /ppm | 20 s (Typical 16S) | 1 ppb |
EC-4H2S-5 | 15 ± 5 μA /ppm | 15 s | <0.01 ppm |
EC-4H2S-10 | 5 ± 3 μA /ppm | 25 s (Typical 16S) | <0.01 ppm |
EC-4H2S-20 | 2 ± 1 μA /ppm | 25 s (Typical 16S) | <0.02 ppm |
EC-4H2S-21 | 2.5 ± 1.5 μA /ppm | 20 s | <0.02 ppm |
EC-4H2S-30 | 500 ± 150nA /ppm | 25 s (Typical 16S) | <30 ppb |
EC-4H2S-50 | 1.2 ± 0.5 μA /ppm | 25 s (Typical 16S) | <0.05 ppm |
EC-4H2S-200 | 0.3 ± 0.1 μA /ppm | 30 s | <0.2 ppm |
EC-4H2S-500 | 100 ± 50 nA /ppm | 25 s (Typical 16S) | <0.5 ppm |
EC-4H2S-2000 | 20 ± 5 nA /ppm | 30 s | <4 ppm |
EC-4H2S-5000 | 6± 2nA/ppm | 50 s | <5 ppm |
EC-4H2S-10000 | 3± 1nA/ppm | 50 s | <10 ppm |
EC-4H2S-20000 | 3± 1nA/ppm | 50 s | <20 ppm |
EC-4H2S-30000 | 2± 1nA/ppm | 50 s | <20 ppm |
EC-4H2S-50000 | 2±1nA/ppm | 50 s | <50 ppm |
Ratings & environment
Repeatability | <±2% signal |
Linearity | Linear |
Long term output Drift | <2% signal/month |
Recommended Load | 5~10 Ω |
Bias Voltage | 0 mV |
Operating Temp. Range | -20°C ~ 50°C |
Operating Humidity | 15% RH ~ 90% RH(non-condensing) |
Operating Pressure Range | 800 ~ 1200 mbar |
Storage & Shelf Life
Recommended Storage Temperature | 0℃~ +20℃ in sealed package |
Expected Operating Life | 24 months in air |
Storage Life | 6 months in original package |
Standard Warranty | 18 months from the date of delivery |
Cross-Sensitivity Data
Available upon request.
Temperature Data
Available upon request
Sensitivity Temperature Dependence
Available upon request
