Hydrogen Cyanide Sensor EC-4HCN-50

CAS NO. /

Product Code: EC-4HCN-50

Hydrogen Cyanide Sensor EC-4HCN-50

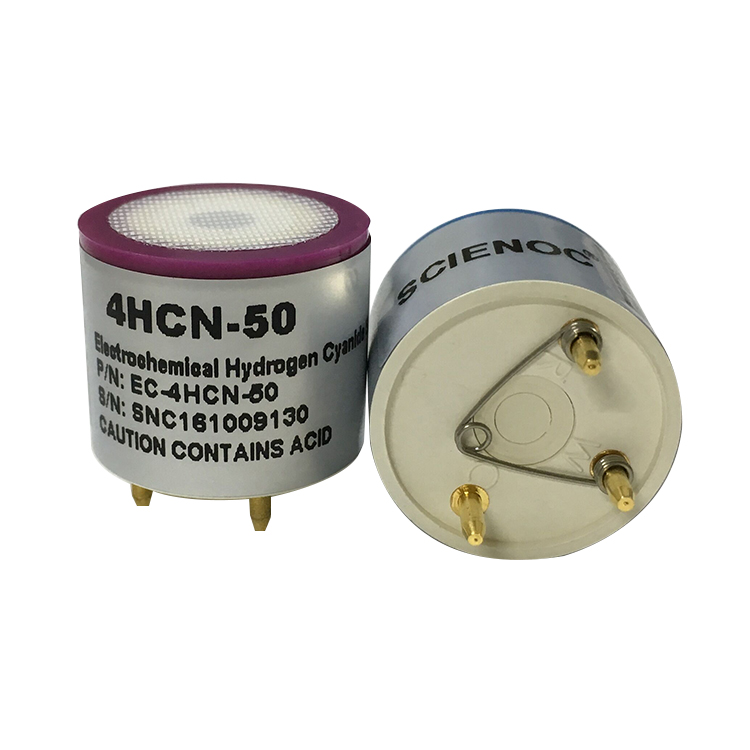

Electrochemical Hydrogen Cyanide Sensor EC-4HCN-50

EC-4HCN-50 is a HCN sensor which detects Hydrogen Cyanide in level from 0-50 ppm.This product is for fixed and portal applications for detection of HCN in industrial and environmental protection fileds.

Hydrogen Cyanide(HCN) Electrochemical Sensor EC4-HCN-50 can be retrofitted easily to existing product designs.


Dimensions in millimeters(±0.1mm)




Target Gas and Concentration

GasP/N

Operating

 principle

Detection

Range

Maximum

Overload

Hydrogen Cyanide

(HCN)

EC-4HCN-50

3-electrode

 electrochemical

0~50ppm100ppm


Gas Sensitivity Characteristics

GasConcentration & Output Current
Hydrogen Cyanide (HCN)0.10± 0.02 μA/ppm


Ratings & environment

Response Time(T90)≤110s
Repeatability<±2% signal
LinearityLinear
Long term output Drift<2% signal/month
Resolution0.2 ppm
Recommended Load5~35 Ω
Bias Voltage0 mV
Operating Temp. Range-20℃~ 50℃
Operating Humidity15% RH ~ 90% RH(non-condensing)
Operating Pressure Range800 ~ 1200 mbar


Storage & Shelf Life

Recommended Storage Temperature0℃~ +20℃ in sealed package
Expected Operating Life24 months in air
Storage Life6 months in original package
Standard Warranty18 months from the date of delivery


Cross Sensitivity Data

Gas

Concentration (ppm)

Output Signal (ppm HCN equivalent)

Carbon Monoxide500
Nitric oxide200
Hydrogen Sulfide1019
Sulfur Dioxide103
Nitrogen Dioxide10-5

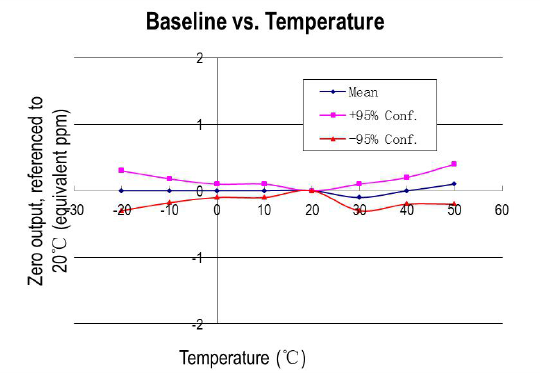

Temperature Data

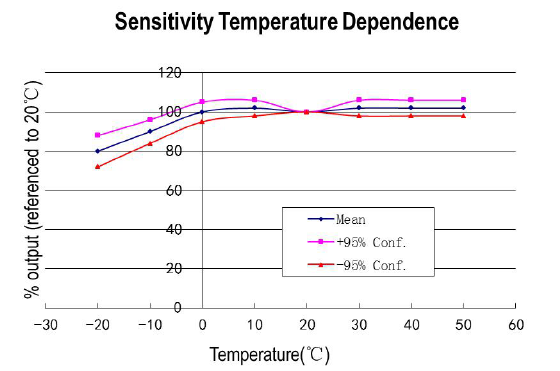

Sensitivity Temperature Dependence
