Hydrogen Chloride Sensor EC-4HCL-50

CAS NO. /

Product Code: EC-4HCL-50

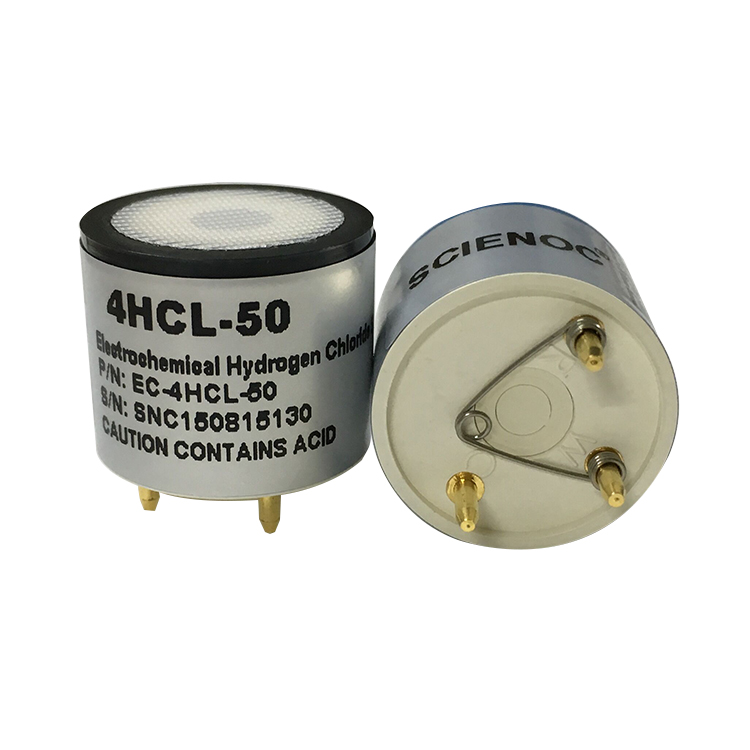

Hydrogen Chloride Sensor EC-4HCL-50

Electrochemical Hydrogen Chloride Sensor EC-4HCL-50

EC-4HCL-50 is a hydrogen chloride sensor which detects HCL in level from 0-50 ppm.This product is for fixed and portal applications for detection of HCL in industrial and environmental protection fileds.

Hydrogen Chloride Electrochemical Sensor EC4-HCL-50 can be retrofitted easily to existing product designs.

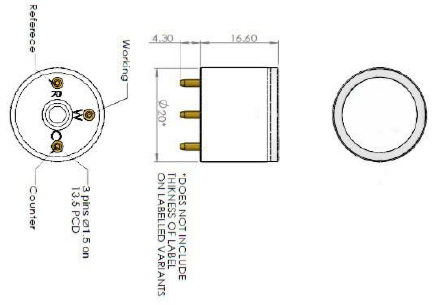

Dimensions in millimeters(±0.1mm)




Target Gas and Concentration

GasP/NOperating principleDetection Range

Hydrogen Chloride

(HCL)

EC4-HCL-50

3-electrode

 electrochemical

0~50ppm


Gas Sensitivity Characteristics

GasConcentration & Output Current
Hydrogen Chloride (HCL)0.3± 0.1μA/ppm


Ratings & environment

Response Time (T90)≤60s (typical 15s)
Repeatability<±2% signal
LinearityLinear
Long term output Drift<2% signal/month
Resolution1 ppm
Recommended Load5~35 Ω
Bias Voltage+200 mV
Operating Temp. Range-20℃~ 50℃
Operating Humidity15% RH ~ 90% RH(non-condensing)
Operating Pressure Range800 ~ 1200 mbar


Storage & Shelf Life

Recommended Storage Temperature0℃~ +20℃ in sealed package
Expected Operating Life24 months in air
Storage Life6 months in original package
Standard Warranty18 months from the date of delivery


Cross Sensitivity Data

Gas

Concentration (ppm)

Output Signal (ppm HCL equivalent)

Carbon Monoxide500
Nitric oxide2045
Hydrogen10000
Sulfur Dioxide1012
Nitrogen100%0
Nitrogen Dioxide101

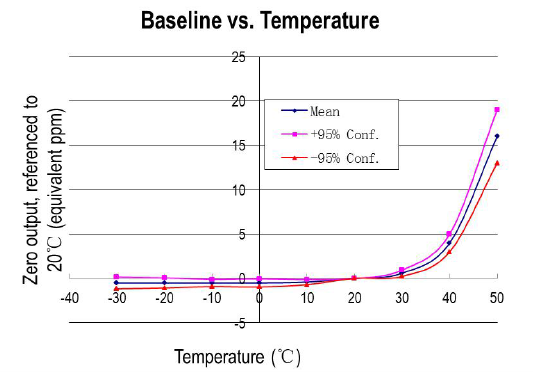

Temperature Data

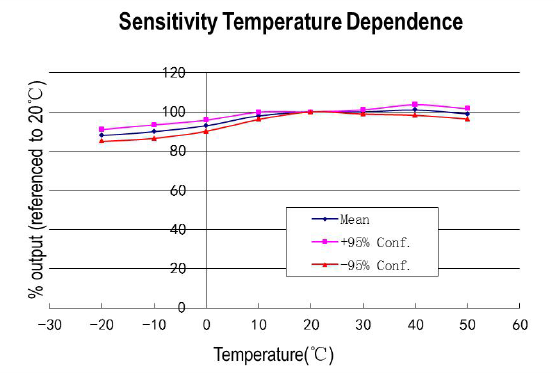

Sensitivity Temperature Dependence
